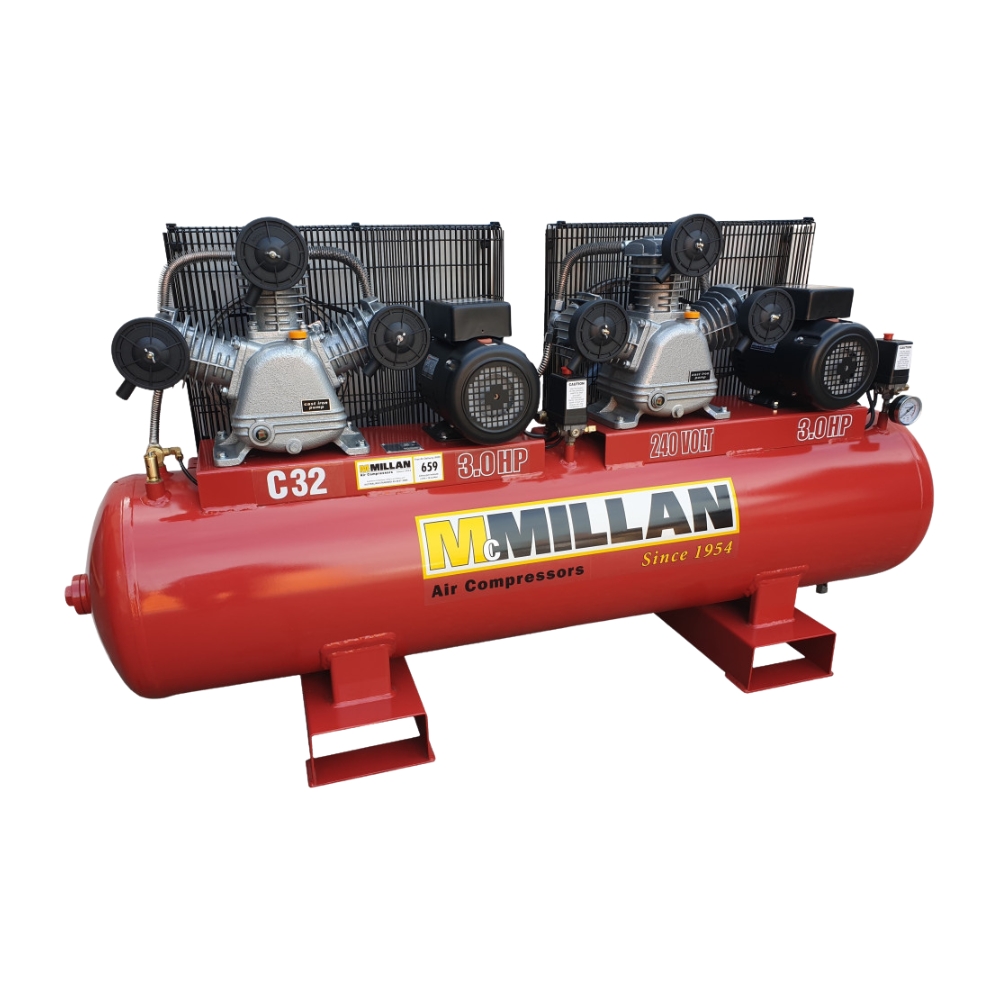

MCMILLAN AIR COMPRESSOR 240V 2 X 3.2HP MOTORS 190L TANK MADE IN AUSTRALIA C32 DUPLEX

Description OP-Series 240V Built in Australia. 20A single phase electric motor. Features heavy duty, cast-iron pump, or ABAC high pressure pump. Rated to AS4637. 5Hp Totally Enclosed Fan Cooled motor. (C22/AF430) Supported by National Service Network. Nema Pressure Switch with overload. (C22/AF430) Pressure switch controlled*. Fitted with Italian MAXI filter regulator. (C22/AF430) Featuring highly efficient reed valves. Fully balanced flywheel with large cooling blades. 1⁄2” BSP tank outlet. Guarding meets Australian Occupational Health & Safety Standards. AF430 fitted with high pressure ABAC pump. C-Series fitted with heavy duty cast-iron pump. C32 fitted with 2x McMillan cast iron pumps. Forklift feet on all models. Tank meets Australian Standard AS1210. Full range of spare parts available. Warranty. 5 years on pump. 5 years on tank. 1 year on motor and fittings. Product Code Displacement Free Air Delivery Motor Tank Power 240V Pump Model Cylinders / Stages CFM L/min CFM L/min HP Litres Amps C22 23.6 668 16.3 461 5.0 155 20 A LB 50 2 / 1 AF430 17.3 489 15.1 430 5.0 155 20 A A49B 2 / 2 C32 32.0 906 23.3 659 2 x 3.2 190 2 x 15A 2 x LB40 6 / 1   Weight Dimensions Kgs Width Length Height 171 500 1500 1000 169 500 1500 1000 201 440 1800 820
