INGERSOLL RAND ELECTRIC 15KW 20HP 3 PHASE COMPRESSORS 3000E20/8

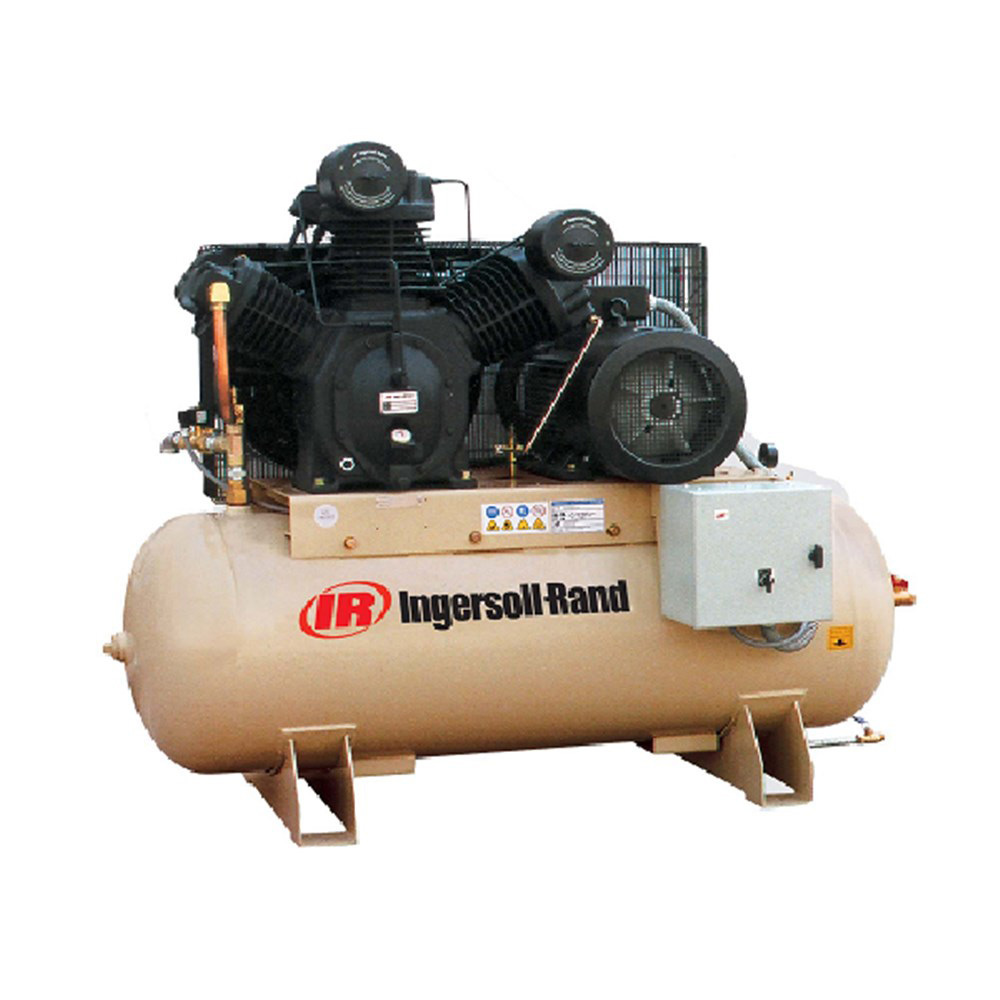

Description The 3000E20/8 S/D air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Australian approved receiver tank. This 415V Belt driven unit operates at 20hp and 125 psi pressure; true industrial use compressors and delivers 66.7cfm. The drive is V-Belt type with provision for easy Belt tensioning. An easily removed, totally enclosed wire Belt guard is STANDARD equipment. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation. Ingersoll Rand’s Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders, the 415V Belt-driven units are a quality investment. FEATURES Durable 100% cast iron cylinder and frame, and two-stage design offering extended pump life for years of trouble-free service. Capable of 175psig maximum operating pressure (factory set at 125psig or 175psig). Automatic start/stop control Condor pressure switch operation. Dual control on 10hp and above – constant speed and auto start/stop control. Includes motor starter, oil sight glass, manual drain and Australian approved tank. SPECIFICATIONS Free Air Delivery 70.7cfm/2002lpm Pump 3000 cast iron NO. of Cylinders 3 Compression Stages 3 Free Speed (rpm) 780 Oil Limit alert Switch Optional Auto Condense Drain NO Motor Size 15kw/20hp Power Type 415v 50Hz electric Engine N/A Drive Type Belt Working Pressure 125psi/860kpa Starter Star Delta Starter Constant/ Dual Controls STANDARD Centrifugal Unloader STANDARD Air Tank Capacity (L) 445L Mounted Type Tank Mounted Weight (kgs) 750 Dimensions Lxlxh (mm) 1900x1100x1540 NOise Level dB(A)@1m 86.2
