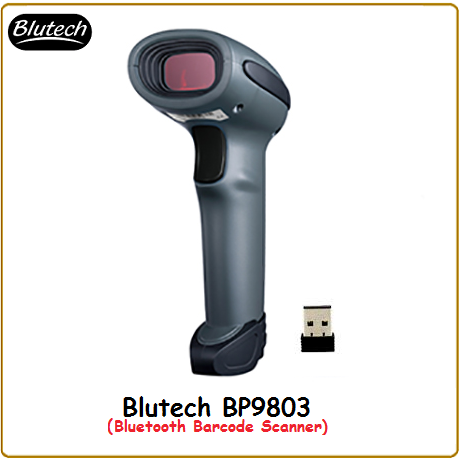

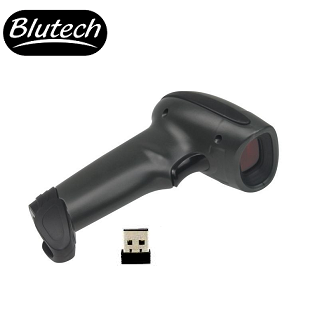

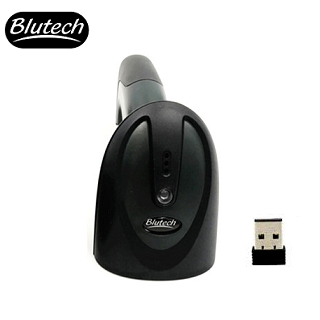

Description The Blutech BP9803 bluetooth barcode scanner has a unique trigger design. It is very fast and accurate in reading all 1d codes. Performance Parameter Light Source 650nm Visible red light diode Scanning Distance 0~280mm @ UPC/EAN 0.33mm PCS=90% Scan Line Single Line Scan Speed 100 scan/second Minimum Resolution 0.1mm(4mil)@Code 39, PCS=90% (customizable 3mil available) Minimum Print Contrast ? 30% (UPC/EAN 100%) Communication Distance Up to 80 meters on the open air Memory Card Capability Can store 512000bits Pair method One to one Barcode Sensitivit y Pitch ±65° Roll ±30° Skew ±55° Barcode Types UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode), RSS 14,RSS Limited, RSS Expanded Mechanical and Electric Performance SIZE(Length x Width x Hei 173mm*67mm*94mm Weight (without cable) 190g Indicator Red and blue double colored Led light, Beeper and motor shake Input voltage 5VDC±10% Working Current 85mA Battery Capacity 2200mAh Charge Method Use cable for charging Charge Time 4.5 Hours Working Time 36 Hours Accessory List Data line Standard 1M straight Operation Manual 1 Piece Environmental Parameter Storage Temperature -40°C ~ 60°C Working Temperature 0°C ~ 50°C Relative Humidity 5% ~ 95% Drop Resistance 1.5M IP Rating IP52 EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI Laser Safety CDRH Class IIa, IEC 60825-1 Class 1 Certificates CE,RoHS,EMC,LVD?ISO9001:2008?ISO14001:2004
